Alien alias "K10 combat"
Modification of the Alien model produced by Svor Systems.
Characteristics
Wingspan | 1080mm |
---|---|
Length | 725mm |
Weight (without battery) | 671g |
Channels | Elevator, rudder, aileron, throttle |

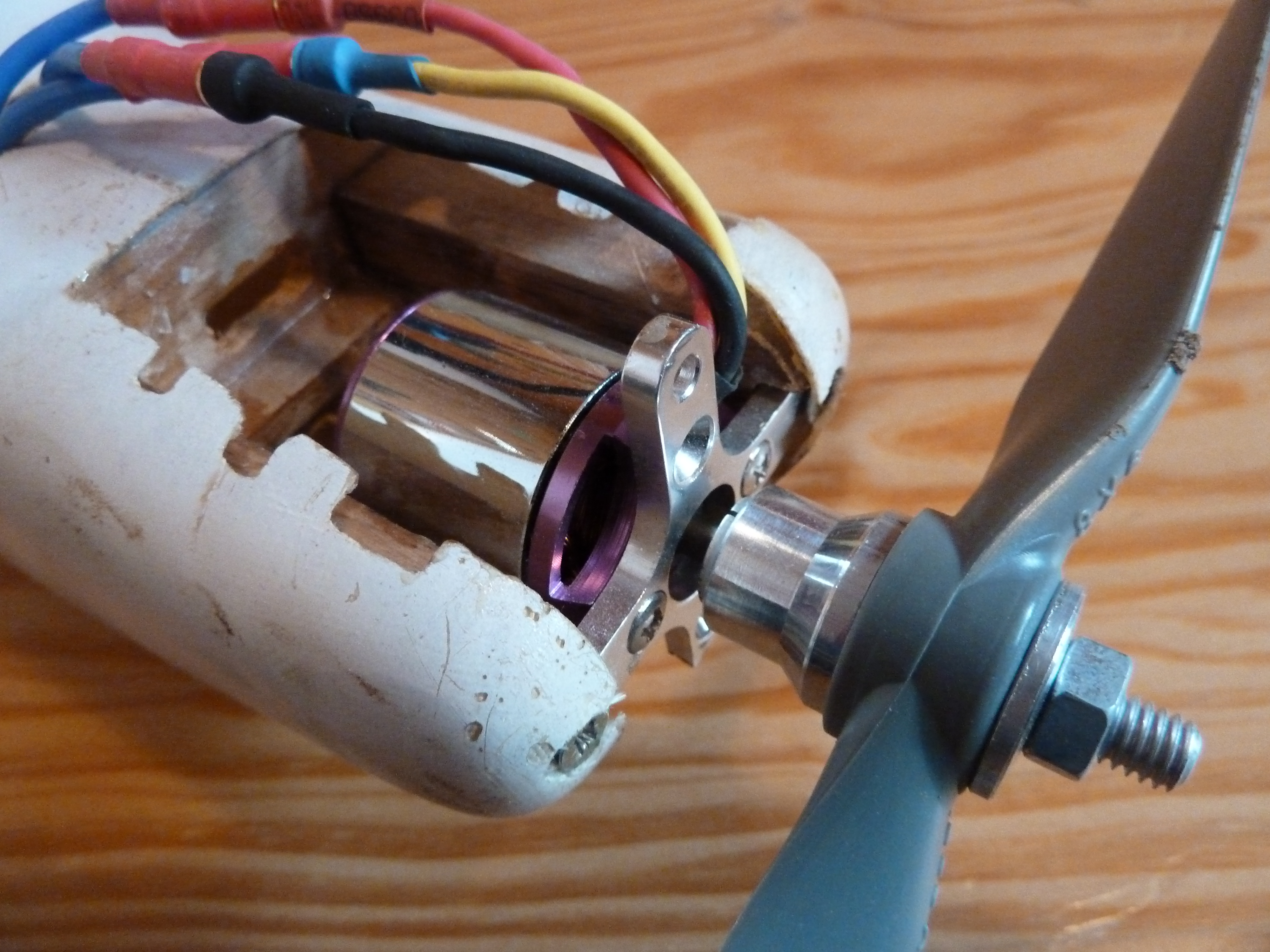

Motor and propeller | Mystery D2836-1700 with 8x6 APC |
Controller | Mystery Pentium-30A |
Receiver | robbe RX 600 DSP (35MHz) |
Battery | LiPo 2S with either 2800mAh or 4000mAh |
Modifications | Landing gear, Ability to airdrop a parachute |
Images
Videos
-
Departure and arrival
Well, actually not what I intended to do but it could have been worse.
-
Parachute airdrop
First it seemed like airdropping the parachute would not be successful. Unfortunately it didn't open completely and the camera work needs still to be improved.
-
Overview taken with the flycam
A short video sequence showing the landscape around our flight area.
